                 FC GATE VALVE

Available from 5000 psi to 15,000 psi in all Full-Bore Sizes

5000psi Flanged Ends        5000psi Threaded Ends      10000psi Flanged Ends
(Interchangeable with Cameron Model FC Gate Valve)

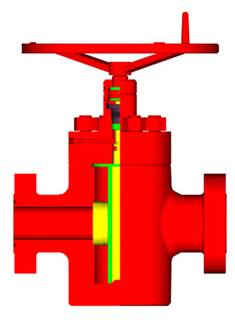

The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16” thru 4-1/16” in working pressures of 5,000 psi thru 10,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
SPECIFICATION
● Manufactured and Tested in Accordance with API Spec 6A
● Forged Steel Body and Bonnet
● A True Bi-Directional Valve
● Low Operating Torque
● Quick Release Hand Wheel
● API Spec 6A PSL, 1, 2, 3
● Material Classes DD, EE, FF, to NACE MR-01-75

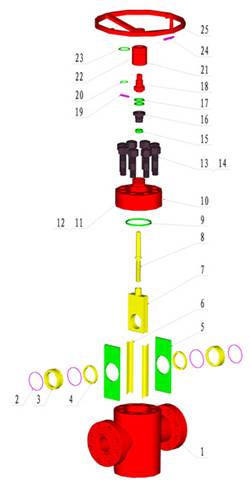

Item

Description

Qty

Material

Remark

1

Body

1

4130



*2

Seat Seal Ring

4

TFLON



*3

Seat

2

410



*4

Body Bushing

2

Stellite.6



*5

Retainer Plate

2

Steel



*6

Guide

2

410



*7

Gate

1

4130+HF



*8

Stem

1

410



*9

Bonnet Gasket

1

Steel



10

Bonnet

1

4130



*11

Check Valve

1

Assy.



*12

Grease Screw

1

Assy.



13

Nut

8

5140



14

Stud

8

4140



*15

Stem Packing

1

TFLON



16

Packing Gland

1

Steel



*17

Bearing Thrust

2

Steel



18

Stem Adapter

1

Steel



19

Stem Pin

1

Steel



*20

O-Ring

1

NBR



21

Bonnet Cap

1

Steel



*22

Grease Fitting

2

Assy.



*23

O-Ring

1

NBR



24

Handwheel Pin

1

Steel



25

Handwheel

1

Steel



*Major Repair------─ One Each For One Year’s Service

SLAB GATE VALVE (NON-RISING STEM)

5000psi Flanged End        5000psi Threaded Ends       10000psi Flanged Ends

The Non-rising stem slab gate valves are available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350℉ or 650℉ high temperature can be supplied on request. Gate valves are available in 3000psi, 5000psi and 10000psi working pressure, nominal size from 1-13/16" through 4-1/16",material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
SPECIFICATION:
● Manufactured and Tested in Accordance with API Spec 6A
●Simple structure and renewable gate and seat assembly.
●One-piece and double-acting gate with long service life.
●Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque.
●Bearing cap is provided with a grease cup to make it easy to inject lubricating grease in the field.
●Threaded packing gland allows removal of bearings and stem packing under line pressure.
●Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing.
●The sealing surfaces of the gate and seat are hardfaced for wear and corrosion resistance.
●Wave springs are installed between the body and seat and between the gate and seat. The gate and seat still maintain a positive metal to metal seal under low pressure.
●Floating gate design requests the hand wheel to be backed off 1/4 turn after its rotation can go no further.
Note:
Under pressure, the valve is forbidden to be semi-shrouded, for it will do great harm to the gate valve and great reduce the service life of the valve.

SLAB GATE VALVE (RISING STEM)

5000psi Flanged Ends              10000psi Flanged Ends
The rising stem slab gate valves are available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350℉ or 650℉ high temperature can be supplied on request. Gate valves are available in 3000psi, 5000psi and 10000psi working pressure, nominal size from 1-13/16" through 4-1/16",material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
The rising stem slab gate valves have the same characters as the non-rising stem slab gate valves. For it is designed by rising stem, the close and open of the valves is completely controlled.
SPECIFICATION:
● Manufactured and Tested in Accordance with API Spec 6A
●Simple structure and renewable gate and seat assembly.
●One-piece and double-acting gate with long service life.
●Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque.
●Bearing cap is provided with a grease cup to make it easy to inject lubricating grease in the field.
●Threaded packing gland allows removal of bearings and stem packing under line pressure.
●Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing.
●The sealing surfaces of the gate and seat are hardfaced for wear and corrosion resistance.
●Wave springs are installed between the body and seat and between the gate and seat. The gate and seat still maintain a positive metal to metal seal under low pressure.
●Floating gate design requests the hand wheel to be backed off 1/4 turn after its rotation can go no further.
Note:
Under pressure, the valve is forbidden to be semi-shrouded, for it will do great harm to the gate valve and great reduce the service life of the valve.

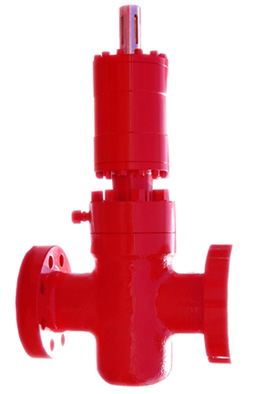

            HYDRAULIC SLAB GATE VALVE


The hydraulic slab gate valves adapt hydraulic control, used extensively in the automatic control system and remote control, work steadily and use freely.

Nominal pressure: 3000psi10000psi
Nominal size: 1-13/16″
4-1/16″
Working temperature: P U
PR1;PSL1,2,3; AA-FF;OP: 100
1500psi

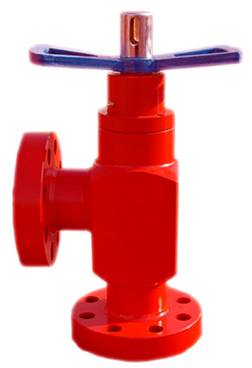

MANUAL CHOKE VALVE

The choke valve is designed to control production rate of the oil well, with working pressure up to 10000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to drive the stem, the adjustable choke valve is designed to adjust the effective area available for the flow to accomplish control of production rate. The positive choke valve is design to accomplish control of production rate by changing flow beans.
Features:
1. The coupling nut used for connecting the bonnet and body allows fast make-up and break-out.
2. Stem tip and bean adaptor are fabricated from special carbide alloys for corrosion and abrasion resistance.
3. Indicator lens with scale marks allows the operator to know stem’s position and actual orifice area.

4. Turn hand wheel counter-clockwise and the valve will open; turn hand wheel clockwise and the valve will close.

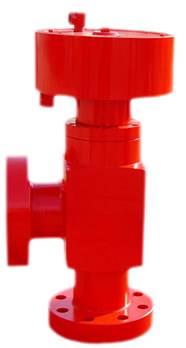

 HYDRAULIC CHOKE VALVE


The hydraulic choke valve is used to be matched with manifold and other assemblies, which is applicable for flow-rate adjustment, that is, to raise or reduce the valve core location is help for alternation of flow-way cross-area and flow-rate control.

Rated pressure200015000psi
Working temperature
P U
Working medium
petroleum & natural gas





DFF STYLE CHECK VALVE
The product is designed and manufactured according to API Spec 6A “Equipment Specification of Wellhead & X’mas tree” and matched and interchangeable with any equipment which conforms to API 6A specification.
It creates the metal-to-metal seal by the pressure of the medium, the more the pressure is, the better the sealing effect is. Anytime the valve chamber can bear the pressure of the pipeline.
Valve body is machined of alloy steel forging with a stronger machinery properties and reliable performance.
Bonnet is connected with valve body with bolt, the seals include the sealing ring in the bonnet and the seal in the valve body;
The sealing face between valve core and valve body is welded with hard alloy with good abrasion resistance and anti-scour; the valve core is made of sulfide-resistance steel and the others adopt the process of hardness limit so the valve is able to be used in H2S condition.
The sealing-face of the valve core and the valve body is bead-welded with carbide, plus rubber seals, which has


SWING CHECK VALVE
The swing check valves are available in 2000psi, 3000psi and 5000psi working pressure, nominal size from 1" through 8",material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
SPECIFICATION:
● Manufactured and Tested in Accordance with API Spec 6A .
●Rugged carbon steel, alloy steel or stainless steel body.
●316SS disc standard.
●Integral or replaceable seat available.
●ANSI and API 6A Flanges.
●Bolted bonnet with top is standard.
●Connections Type: Threaded ends and Flanged ends.
APPLICATIONS
● Oil Gas lines , Manifolds and Pipelines● Crude Oil and Sour Gas
● Well Treating Chemicals

EXPANDING GATE VALVE(Interchangeable with WKM Model Gate Valve)
The expanding gate valve features a non-ring stem with an expanding gate design to provide safe, dependable service in a variety of environments, It’s a available in flanged or threaded ends in standard bore sizes from 2-1/16” thru 4-1/16” in working pressures of 3000psi thru 5000psi.
Full-Bore Design:
Maximizes valve service life.
Eliminates the collections of destructive particles.
Expanding Gate:
Produces a positive mechanical seal across the seats.
Isolates the body cavity from bore pressure in both the open and closed position.
Metal-to-Metal Seal:
Body/bonnet interface, and gate/seat interface.

Press Fit Seat:
Press fit seats allow the seats to be tightly wedged into the seat pockets in the open or closed position.
Long Life, Low Maintenance:
Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.

 HAMMER UNION
   The Hammer Union can be used for cementing trucks, all kinds of manifolds and other high pressure equipment, and pipes. It is an important part for transporting oil. Water, fracturing fluid and mixed fluid . These products are all made of high quality steel by forging and finishing cut .They has good Mechanical performance and sealing property. Especially they can operate under the bad weather condition. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure, structural length drift diameter. The product adopts some end connections of pipeline thread, tubing thread, butt-weld.
   The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure 600,Figure 602, Figure 1002, Figure 1003,Figure 1502 and Figure 2002.

Figure 100 Hammer Union

Nominal pipe Size:2”, 2-1/2”, 3”, 4” , 6” , 8”;
Pressure Rating:1000psi cwp;1500 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections.
Features
●Pressure-tight make-up with hammer;

●Economical, low-pressure union

Figure 200 Hammer Union

Nominal pipe Size:1”, 1-1/4”, 1-1/2”,2”, 2-1/2”,3”, 4”;
Pressure Rating:2000psi cwp;3000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
General-service manifolds and lines.
Features
●Economical, general-purpose union;
●Butt-weld available.

Figure 206 Hammer Union

Nominal pipe Size:1”, 2”, 3”,4”,6”,8”, 10”;
Pressure Rating:2000psi cwp;3000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections, suction service, and corrosion service.
Features
●O-ring in male sub improves sealing and protects metal-to-metal seal against corrosion;
●Replaceable O-ring extends union service life.

Figure 400 Hammer Union

Nominal pipe Size:2”, 2-1/2”, 3”,4”,6”,8”,10”,12”;
Pressure Rating:4000psi cwp;6000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections, pump suction, and mud service.
Features
●2-1/2” through 12” sizes have O-rings for primary seal;
●Butt-weld available.

 Figure 600 Hammer Union

Nominal pipe Size:1”, 2”, 3”, 4”;
Pressure Rating:6000psi cwp;9000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Steam service, boiler connections, manifold, and line connections for production, drilling, and well servicing.
Features
●Bronze seat provides primary seal; will not rust in water services.

Figure 602 Hammer Union

Nominal pipe Size:1”, 2”, 3”, 4”;
Pressure Rating:6000psi cwp;9000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections and mud service.
Features
●Compact;
●Replaceable, lip-type seal provides primary seal, protects secondary metal-to metal seal, and minimizes flow turbulence;Butt-weld available

  Figure 1002 Hammer Union

Nominal pipe Size:1”, 2”, 3”, 4”,5”,6”;
Pressure Rating: 1” to 4” 10000psi cwp;15000 psi test; 5” to 6” 7500psi cwp;12000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Cementing, fracturing, acidizing, testing, and choke and kill lines.
Features
●Replaceable, lip-type seal provides primary seal, protects secondary metal-to metal seal, and minimizes flow turbulence;
●Butt-weld available;
●5” and 6” sizes have O-rings for primary seals.

 Figure 1003 Hammer Union

Nominal pipe Size:2”, 3”, 4”,5”;
Pressure Rating: 2” to 3” 10000psi cwp;15000 psi test; 4” to 5” 7500psi cwp;12000 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
For high-pressure connections where lines can’t be aligned.
Features
●Ball seat provides positive seal with up to 7-1/2°misalignment; 2” model up to 4°;
●Replacement O-ring on male sub provides primary seal, and protects metal-to-metal seal against abrasion and corrosion;
●Available with threaded or butt-weld ends.

Figure 1502 Hammer Union

Nominal pipe Size:2”, 3”, 4”;
Pressure Rating: 15000psi cwp;22500 psi test;
Connections Type: pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Cementing, fracturing, acidizing, testing, and choke and kill lines.
Features
●Replaceable, lip-type seal provides primary seal, protects secondary metal-to metal seal, and minimizes flow turbulence;
●Butt-weld available;

Figure 2002 Hammer Union

Nominal pipe Size:2”, 3”;
Pressure Rating: 20000psi cold working pressure;
Connections Type: butt-weld;
Component Parts: Detachable Nut, Male Sub, Female Sub, Seal Ring, Retainer Segment, Retainer Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Cementing, fracturing, acidizing, testing, and choke and kill lines.
Features
●Replaceable, lip-type seal provides primary seal, protects secondary metal-to metal seal, and minimizes flow turbulence;Butt-weld configurations only
