WWB Manual Tongs

 WWB manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws. It is designed specially for North America,Canada.

NO. Of Latch Lug Jaws

Handing O.D.

Rated Torque

mm

In

KN.m

1#

60.3-95.25

2 3/8-3 3/4



48

2#

88.9-117.48

3 1/2-4 5/8

3#

114.3-146.05

4 1/2-5 3/4

4#

133.35-184.15

5 1/4-7 1/4

5#

174.6-219.1

6 7/8-8 5/8

6#

228.6-273.05

9-10 3/4

35

CASING TONG

Type Q340-762/35(133/8-30in) Casing Tong is capable of marking up or breaking out the screws of casing and casing coupling in drilling operation.

Pipe Size

Torque max.(Kn.m)

mm

in

340-368

133/8-141/2









35

368-406

141/2-16

406-445

16-171/2

445-483

171/2-19

483-508

19-20

508-546

20-211/2

546-584

211/2-23

610-648

24-251/2

648-686

251/2-27

686-724

27-281/2

724-762

281/2-30

 B.MANUAL TONGS

 Type Q86-324/75(33/8-123/4) in manual tong is an essential tool in oil drilling operation to fasten or remove the screws or drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps.

No. of latch lug jaws

Handle shoulder

Handle O.D.mm(in)

Torque max.KN.m

5a

1

86-105(33/8-41/8)

55

2

105-133(41/8-51/4)



5b

1

108-133(41/8-51/4)



75

2

127-146(5-53/4)

3

152-171(6-63/4)



5b-1

1

133-146(5-6)



75

2

146-168(6-7)

3

168-208(7-8)



5c

1

168-187(65/8-73/8)

75



55

2

187-203(73/8-8)

3

216-219(81/2-82/8)

5b

1

216-244(81/2-95/8)

55

2

270-273(105/8-103/4)

5e

1

298(113/4)

55

2

324(123/4)

 DB Manual Tongs

 Type Q31/2-17/90 manual tong is used for making up or breaking out the screws of drill tools and casing joint or coupling. It can be adjusted by changing lug jaws latch and latch steps.

No.of latch lug jaws

No.of hinge pin hole

Handle O.D.mm(in)

Torque max.(KN.m)

Weight(Kg)



1

1

89-152(31/2-6)



90







370

2

127-178(5-7)

3

152-210(6-81/4)

2

1

203-244(8-95/8)

90

2

270-286(105/8-111/4)

3

1

298-324(113/4-123/4)

55

2

340-365(133/8-143/8)

4

2

406-432(16-17)

55

C Manual Tongs

Size Range:23/8-103/4in  Rated Capacity:48kN.m

No.of latch

No.of short latch

Pipe Size

Rated Capacity

mm

in

KN.m

1

1#

60.33-93.17

23/8-35/8





48

2

1#

73.03-108

27/8-41/4

3

1#

88.9-133.35

31/251/4

4

1#

133.35-177.8

51/2-7

5

2#

177.8-219.08

7-85/8

6

2#

244.5-273.05

95/8-103/4

Type SDD Manual Tongs

Size Range:4-17in

Rated Capacity:140kN.m

 Model

Handle shoulder

Pipe Size

Twist apart

in

mm

KN.m





SDD4-17/140

1

4-81/2

101.6-215.9

140

2

81/2-12

215.9-304.8

140

3

12-15

304.8-381

105

4

153/4

400.1

140

5

16-17

406.4-431.8

85

 Manual Tongs

This tool is used to fasten or remove the screws of drill tool and casing in well drilling operation.The handling size of this type tong can be adjusted by changing latch lug jaws.

Technical Specifications

No.of latch lug jaws

Handle O.D.

Torque max.KN.m

in

mm

1

23/8-41/2

60.3-114.3



35

2

41/2-61/2

114.3-165.1

3

61/2-85/8

165.1-219.1

4

95/8-103/4

244.5-273.1

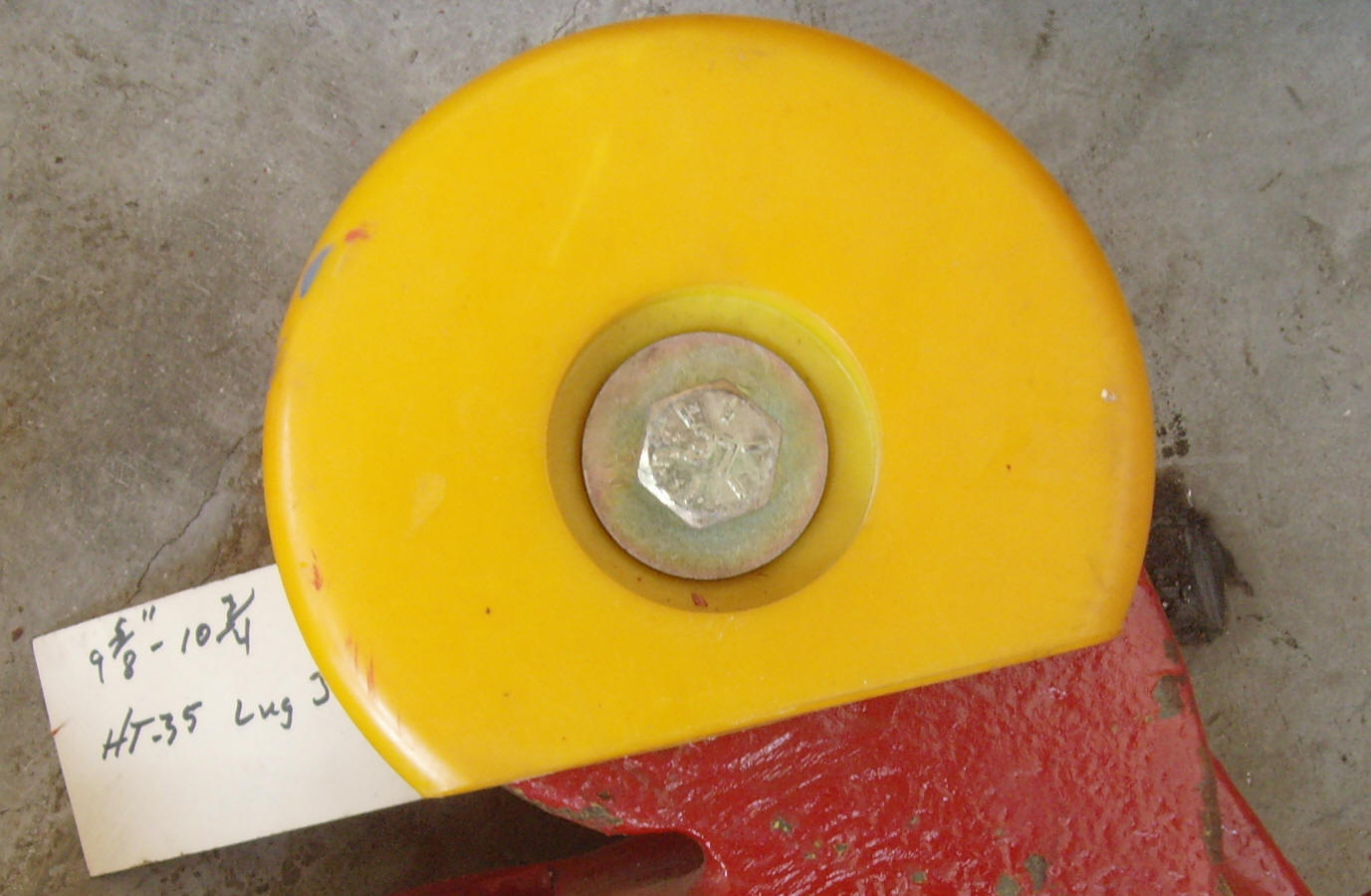

                         HT rubber safety handles tongs                                                       hockey puck type safety handles tongs
